LFRTrack Roller BearingsNPP Rubber Seals

LFR5202NPP

d 15 × D 45 × B 15.9 mm

The LFR5202NPP is a track roller bearing with bore 15mm, outer diameter 45mm, and width 15.9mm rated for dynamic load 9.7 kN.

Request Quote for LFR5202NPP Search Similar

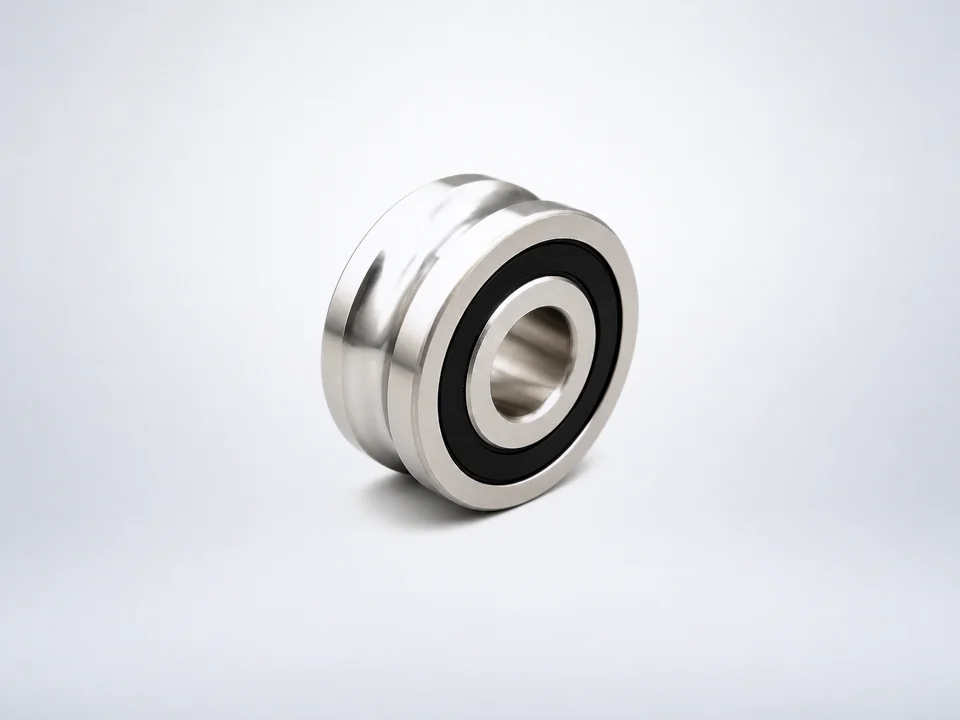

LFR5202NPP — representative product photo — Representative product

LFR5202NPP · 15x45x15.9 mm

📋 Technical Specifications

Bore (d)

15mm

Outer Dia. (D)

45mm

Width (B)

15.9mm

Dynamic Load (Cr)

9.70 kN(9700 N)

Static Load (C0r)

6.10 kN(6100 N)

Reference Speed

8000rpm

Bearing type	Track Roller Bearings
Series	LFR
Seal type	NPP Rubber Seals
Material	Confirmed per inquiry — grade and certificate availability reviewed before quotation
Bore type	Confirmed per drawing
Dimension unit	millimeter (mm)

📐 Detailed Dimensions

Basic dimensions (mm)

Bore diameter (d)	15
Outer diameter (D)	45
Width (B)	15.9

Corner radius, shoulder dimensions, fits and tolerances are confirmed against the requested suffix and application drawing before quotation.

📑 Drawings & 3D Model

📑

2D Drawing

Request drawing →

📅

3D STEP Model

Request STEP →

🔎

CAD File

Request CAD →

Drawings and 3D models are provided per inquiry. Tell us your application and we will send the appropriate file format (DXF, DWG, STEP, IGES).

⚡ Source-Data Reference Speed

Catalog reference

8,000 rpm

Lubrication method and application speed limit are confirmed per inquiry; no oil-speed value is derived from this number.

⇄ Same-size Bearings & Reference Options

The models below share the 15x45x15.9 mm boundary dimensions. Matching d/D/B alone does not prove interchangeability; verify seals, clearance, ring features, load ratings, fits, and application conditions before replacement.

No other catalog models share the same boundary dimensions.

⚙ Typical Applications

Linear guide systems

Conveyor systems

Cam followers

Automated machinery

Packaging equipment

Robotics

Why choose NLHB?

NLHB supports both in-house manufacturing and qualified partner sourcing. We confirm the specification, supply route, inspection requirements, and available documentation before quotation.

About NLHB →

4,315

Catalog Models

15+

Years

RFQ

Specification Confirmed

❓ Frequently Asked Questions

What are the dimensions of LFR5202NPP?

The LFR5202NPP bearing has bore (d) = 15 mm, outer diameter (D) = 45 mm, and width (B) = 15.9 mm.

What is the load rating of LFR5202NPP?

Dynamic load rating (Cr) = 9.70 kN (9700 N), static load rating (C0r) = 6.10 kN.

What bearing series does LFR5202NPP belong to?

The LFR5202NPP belongs to the LFR within the Track Roller Bearings category.

Can NLHB supply LFR5202NPP equivalents from other brands?

Depending on the model and order requirements, NLHB may manufacture in-house or source through qualified partner factories. Interchange and supply route are confirmed against your specification before quotation. All trademarks belong to their respective owners.

How do I order LFR5202NPP from NLHB?

Click "Request Quote" and send us your quantity, application, and required specifications. We review the specification, supply route, lead time, and pricing before issuing a quotation. Response time depends on specification complexity.

What materials are available for LFR5202NPP?

Material grade is confirmed per inquiry. Availability depends on the model, quantity, application, and whether the order is manufactured in-house or sourced through a qualified partner factory. Material certificates or inspection documents are confirmed before quotation when required.
