Inch R / 1600 SeriesDeep Groove Ball Bearings

1606

d 9.525 × D 23.017 × B 7.938 mm

The 1606 is a deep groove ball bearing with bore 9.525mm, outer diameter 23.017mm, and width 7.938mm rated for dynamic load 2.5 kN.

Request Quote for 1606 Search Similar

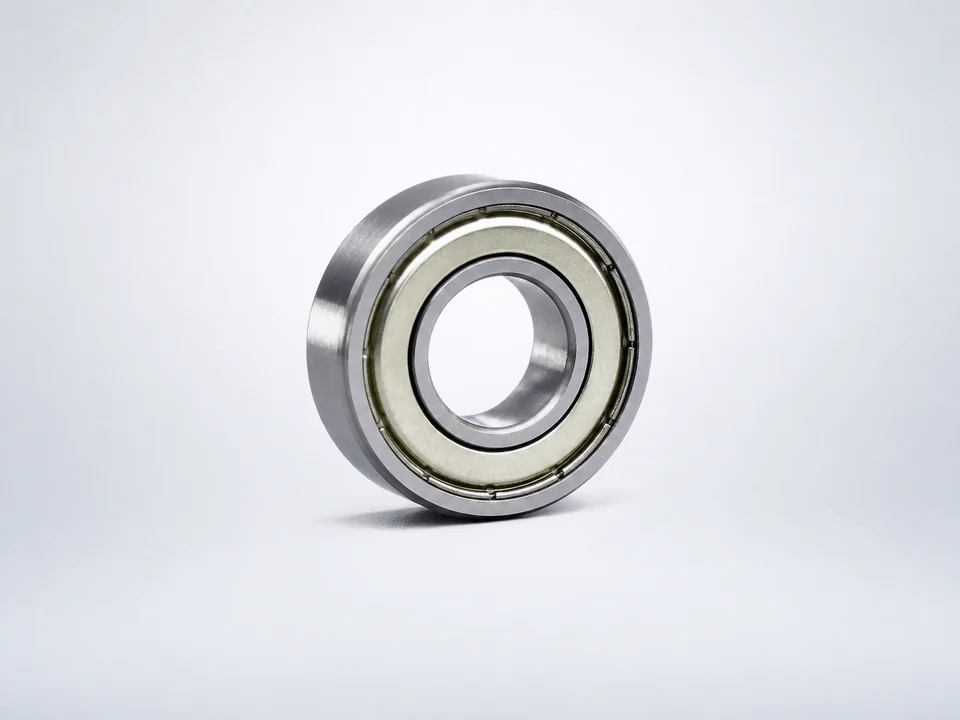

1606 — representative product photo — Representative product

1606 · 9.525x23.017x7.938 mm

📋 Technical Specifications

Bore (d)

9.525mm

Outer Dia. (D)

23.017mm

Width (B)

7.938mm

Dynamic Load (Cr)

2.55 kN(2547 N)

Static Load (C0r)

1.34 kN(1342 N)

Reference Speed

Confirm per inquiryrpm

Bearing type	Deep Groove Ball Bearings
Series	Inch R / 1600 Series
Seal type	Confirm per inquiry
Material	Confirmed per inquiry — grade and certificate availability reviewed before quotation
Bore type	Confirmed per drawing
Dimension unit	millimeter (mm)

📋 Nominal Variants by Seal Type

Catalog variants open a detail page. Inquiry-only configurations go directly to RFQ.

Seal Type	Model Code	Typical Use
Double metal shields	1606ZZ	General dust protection	Quote →
Double contact rubber seals	1606 2RS	Dust and moisture protection at moderate speed	Quote →
Double non-contact rubber seals	1606 2RZ (inquiry only)	Lower-friction sealing at higher speed	Quote →
C3 radial clearance	1606 C3 (inquiry only)	Motors and applications with higher operating temperature	Quote →

📐 Detailed Dimensions

Basic dimensions (mm)

Bore diameter (d)	9.525
Outer diameter (D)	23.017
Width (B)	7.938

Corner radius, shoulder dimensions, fits and tolerances are confirmed against the requested suffix and application drawing before quotation.

📑 Drawings & 3D Model

📑

2D Drawing

Request drawing →

📅

3D STEP Model

Request STEP →

🔎

CAD File

Request CAD →

Drawings and 3D models are provided per inquiry. Tell us your application and we will send the appropriate file format (DXF, DWG, STEP, IGES).

⇄ Same-size Bearings & Reference Options

The models below share the 9.525x23.017x7.938 mm boundary dimensions. Matching d/D/B alone does not prove interchangeability; verify seals, clearance, ring features, load ratings, fits, and application conditions before replacement.

Model	Relationship	Series	Seal	Action
1606 2RS	Configuration variant	1600 Series	Sealed	Quote →
1606ZZ	Configuration variant	1600 Series	Shielded	Quote →

⚙ Typical Applications

Electric motors

Fans and blowers

Pumps

Household appliances

Power tools

Office equipment

General machinery

Why choose NLHB?

NLHB supports both in-house manufacturing and qualified partner sourcing. We confirm the specification, supply route, inspection requirements, and available documentation before quotation.

About NLHB →

4,315

Catalog Models

15+

Years

RFQ

Specification Confirmed

❓ Frequently Asked Questions

What are the dimensions of 1606?

The 1606 bearing has bore (d) = 9.525 mm, outer diameter (D) = 23.017 mm, and width (B) = 7.938 mm.

What is the load rating of 1606?

Dynamic load rating (Cr) = 2.55 kN (2547 N), static load rating (C0r) = 1.34 kN.

What bearing series does 1606 belong to?

The 1606 belongs to the Inch R / 1600 Series within the Deep Groove Ball Bearings category.

Can NLHB supply 1606 equivalents from other brands?

Depending on the model and order requirements, NLHB may manufacture in-house or source through qualified partner factories. Interchange and supply route are confirmed against your specification before quotation. All trademarks belong to their respective owners.

How do I order 1606 from NLHB?

Click "Request Quote" and send us your quantity, application, and required specifications. We review the specification, supply route, lead time, and pricing before issuing a quotation. Response time depends on specification complexity.

What materials are available for 1606?

Material grade is confirmed per inquiry. Availability depends on the model, quantity, application, and whether the order is manufactured in-house or sourced through a qualified partner factory. Material certificates or inspection documents are confirmed before quotation when required.

Get a quote for 1606

Send us your quantity, application and target lead time. We confirm spec, interchange and realistic delivery — no order confirmed until you approve.
